MS Clarifier

Name: MS Clarifier
Brand: FILTRIVA Water Systems
Price: 255000.0 INR
Availability: InStock

Price 255000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MS Clarifier Specification

Noise Level
Low

Water Out Conductivity
< 0.1 S/cm

Efficiency (%)
96%

Frequency
50 Hz

Recycle Rate
98%

Water in conductivity
Up to 2000 S/cm

Power Consumption
2.5 kW

Pump Type
Centrifugal

Technology
Mechanical Flocculation

Feature
High Clarification, Easy Maintenance

Usage & Applications
Waste Water Treatment, Industrial Processing

Flow Rate
25-500 m3/hr

Ph Level
6.5-8.5

Drive Type
Motor

Water Source
Industrial Effluent

Purity Level
Up to 99%

Automatic Grade
Automatic

Power Source
Electric

Product Type
Effluent Clarifier

Voltage
220-240 V

Volume
10000 L

Material
Mild Steel

Filter Type
Lamella Plates

Capacity
Up to 500 KLD

Installation Type
Floor Mounted

Control Panel
PLC Based

Color
Blue/Grey

Dimension (LxWxH)
4.2 x 4.2 x 5.5 m

Sludge Removal Type
Mechanical Scraper

Inlet Pressure
1.5 Bar

Safety System
Overload Protection

Operating Temperature Range
5C to 50C

Discharge Outlet Size
150 mm

Surface Treatment
Epoxy Coated

About MS Clarifier

Lamella Clarifier

High-efficiency Lamella Clarifier designed for rapid solid-liquid separation in ETP, STP, WTP, and industrial wastewater treatment plants. Its inclined plate design increases settling area, reduces footprint, and improves sludge settling efficiency while minimizing maintenance and operational costs. Ideal for removing suspended solids, turbidity, sludge, and process contaminants in industries like pharma, food, textile, chemical, and municipal water treatment applications.

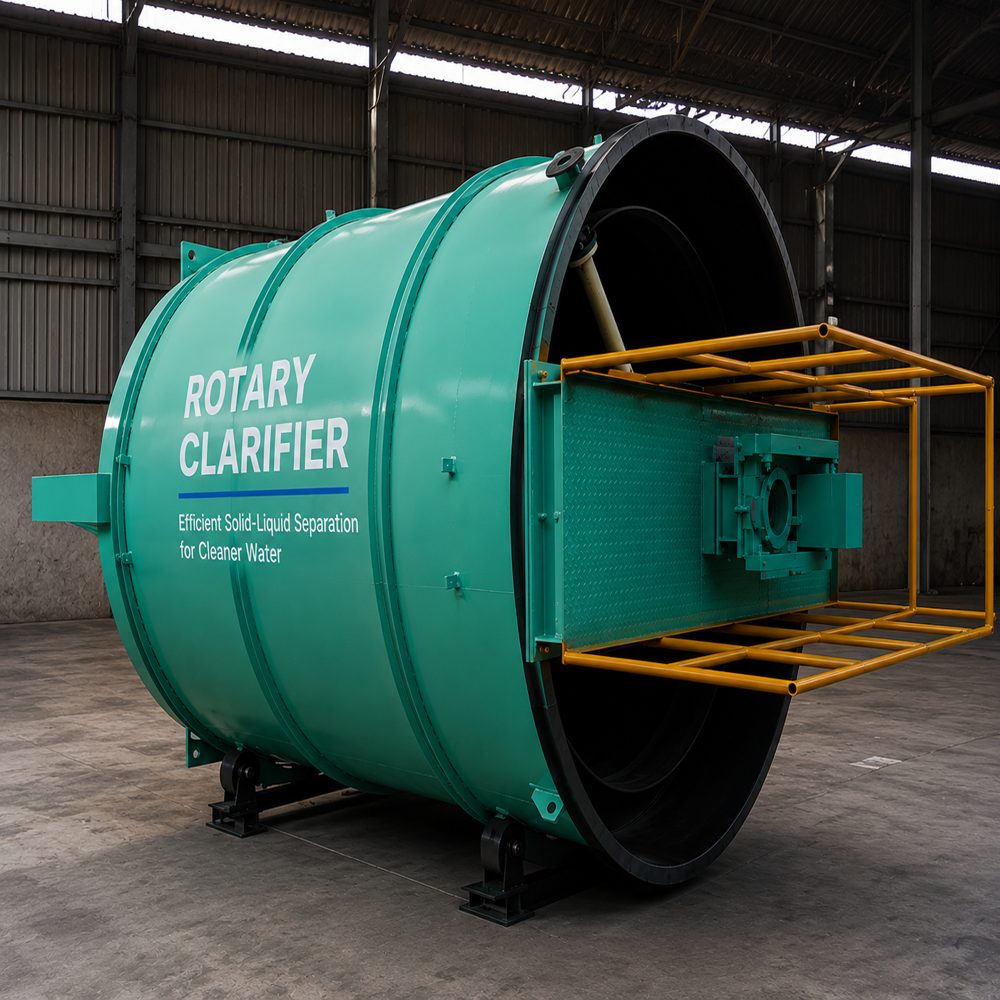

Rotary Clarifier

Heavy-duty Rotary Clarifier engineered for continuous sludge collection and efficient wastewater clarification in sewage treatment and industrial effluent plants. Equipped with robust drive mechanisms and scraper assemblies, it ensures uniform sludge removal, improved sedimentation, and reliable long-term performance. Suitable for primary and secondary clarification processes in ETP, STP, municipal, and process water treatment systems.

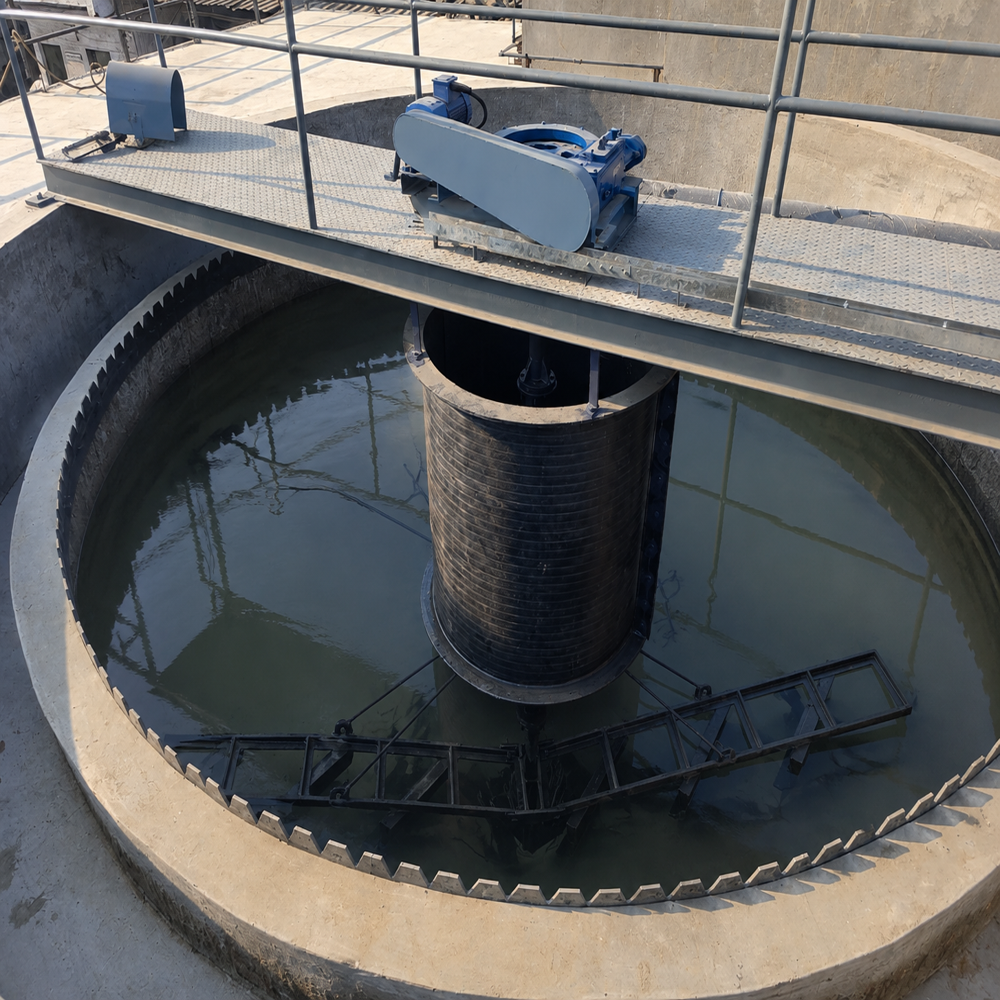

Circular Clarifier

Industrial Circular Clarifier system built for effective sedimentation, sludge thickening, and suspended solids removal from water and wastewater streams. Designed for high hydraulic efficiency, low power consumption, and smooth sludge handling, it delivers consistent performance in industrial and municipal treatment plants. Widely used in raw water treatment, sewage treatment, recycling systems, and process water clarification applications.

Efficient Mechanical Flocculation Technology

The MS Clarifier uses advanced mechanical flocculation and lamella plate filtration to ensure rapid and thorough separation of impurities from industrial effluents. This technology significantly improves water clarity and maximizes the recycling rate, making it suitable for a wide range of applications in wastewater treatment and industrial processing.

Durable and User-Friendly Design

Constructed with mild steel and protected by an epoxy coating, the MS Clarifier is built to withstand demanding environments. Its automated, floor-mounted setup includes a PLC-based control panel for smart monitoring, and a mechanical scraper for effortless sludge extraction. Low noise levels and easy maintenance further simplify operations.

High Purity and Safety Standards

With a water output purity level up to 99% and built-in overload safety protection, the MS Clarifier promotes operational safety while delivering exceptional performance. Its design ensures consistent results, meeting rigorous industrial requirements for efficiency, reliability, and compliance with water treatment standards.

FAQ's of MS Clarifier:

Q: How does the MS Clarifier process industrial wastewater?

A: The MS Clarifier employs mechanical flocculation and lamella plate filtration to separate and remove suspended solids from industrial effluent. As water passes through the system, impurities settle out with the help of a mechanical scraper, resulting in highly clarified, reusable water.

Q: What are the main benefits of using the MS Clarifier in wastewater treatment?

A: This clarifier offers high clarification, a recycling rate of 98%, and up to 99% water purity. Its robust construction, automatic operation, and easy maintenance make it ideal for demanding industrial environments, ensuring reliable performance and reduced operational costs.

Q: When and where can the MS Clarifier be installed?

A: The MS Clarifier is suitable for continuous industrial operations and can be floor-mounted in treatment plants handling effluent streams. Its epoxy-coated surface and durable design allow it to operate efficiently in ambient temperatures from 5C to 50C.

Q: What is the function of the PLC-based control panel in the MS Clarifier?

A: The PLC-based control panel automates and monitors the clarifying process, adjusting system parameters in real time for optimal performance, safety, and convenience.

Q: What makes sludge removal efficient in this clarifier?

A: The MS Clarifier uses a mechanical scraper, which continuously sweeps settled sludge into a collection area, enabling hassle-free and effective removal without manual intervention.

Q: How is the safety of the MS Clarifier ensured during operation?

A: Equipped with an overload protection system, the clarifier automatically prevents damage to the electric drive and internal components, safeguarding both the equipment and operators.
